Adhesion tester

PosiTest® Pull-Off Adhesion Testers measure adhesion of coatings to metal, wood, concrete and other substrates. Both models measure the force required to pull a specified test diameter of coating away from its substrate using hydraulic pressure. Revolutionary self-alignment feature uses a quick-coupling actuator and a spherical articulating dolly head to provide uniform distribution of pulling force over surface being tested. Built-in rechargeable batteries perform over 200 tests per charge. You can continue testing with AC power while batteries recharge. Supplied with universal AC Adapter. Tester is available in two models: manual or automatic. See model differences described below

Simple Both models are portable, hand-operated instruments that require no external power source; ideal for lab and field use. Large, easy-to-read LCD. Pull Rate Indicator allows the operator to easily monitor and adjust the rate of pull in accordance with international test methods. Easily select dolly sizes, change measurement units, or store readings with just the touch of a button. Conversion charts are not required; tester automatically calculates pressure based on the dolly size. Inexpensive, single-use dollies eliminate cleaning and can be kept as a permanent record.

Accurate Pressure system is calibrated and certified to ┬▒ 1% accuracy using a NIST traceable load cell. Self-aligning dolly enables accurate measurements on both smooth or uneven surfaces. Conforms to national and international standards including ASTM D4541/D7234, ISO 4624/16276-1, AS/NZS 1580.408.5 and others. Hi-grade, industrial pressure sensor ensures continued accuracy.

Versatile Internal Memory stores maximum pull-off pressure, rate of pull, test duration and the dolly size for up to 200 pulls. Optional PosiSoft® software is available for downloading to a computer. LCD displays the pressure value in PSI or MPa. *10, *14, 20 or 50 mm dollies maximize capability and accuracy across a wide range of bond strengths. *Custom made, call for pricing.

Durable Weatherproof, dustproof and shockproof; meets or exceeds IP65. Can be used in any position.

For additional testing equipment, please see the Hardness tester , Temperature meters , and Thickness gauges pages.

Pull-off adhesion tester

Choose either the manual or the automatic model. Both models include everything needed for testing: instructional video and booklet, Certificate of Calibration traceable to NIST, adhesion tester with digital display, built-in rechargable NiMH batteries with a charger, 20 aluminum test dollies (20 mm size), abrasive pad, cutting tool, adhesive with mixing sticks and palettes, cotton swabs, rugged carrying case, and a two year warranty. Made in USA.

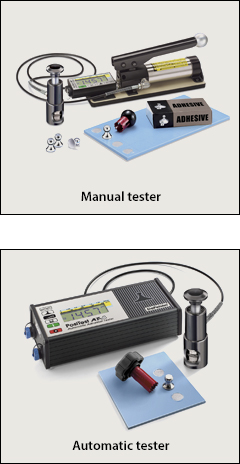

Manual tester : All features described at top of this page, plus a heavy-duty manual hydraulic pump designed to apply smooth and continuous pull-off pressure with a single stroke. And a pull rate indicator to manually monitor and adjust the rate of pull.

Automatic tester : All features described at top of this page, plus an electronically controlled hydraulic pump that automatically applies smooth and continuous pull-off pressure at a user-specified rate. Test with the simple push of a button. No twisting, pumping or cranking. No valves to close, needles to reset, or scales to adjust. User selectable pull rates ensure compliance with international test methods for a variety of industries including metal, wood and concrete.

Item
Number
Item
Description
Mfg.
Number
Each
Price

J2160manual pull-off adhesion testerAT-MAdd to cart | Add to list
J2162automatic pull-off adhesion testerAT-AAdd to cart | Add to list
J216450 mm dollie accessory kitAT50KITAdd to cart | Add to list
J2165pack of 20 m dollies, 10/pkDOLLY20Add to cart | Add to list
J2166pack of 50 m dollies, 4/pkDOLLY50Add to cart | Add to list
