Home » Product » Trimmers

Trimmers

Saws, air saws, pneumatic panel saws, trimmers, flush cut trimmers, gel coat notch trimmer.

Trimmers and saws listed below use blades with either a 7/16", 1/2", 3/4", or 0.868 center hole. Except the K5023F flush cut trimmer, which has a 1/4" collet and uses blades with a 1/4" spindle shank.

Cut-off tools are also available, if you prefer the cutting blade perpendicular to the body of the tool. Additional saws are shown on our Saws, trimmers page. Please see the Saw blades page for a selection of circular blades for saws listed below.

SAFETY WARNING: Make sure the RPM of the saw or trimmer you choose below, does not exceed (is less than) the maximum RPM of any accessories you use with that tool.

3" trimmer, 1.00 HP

Bodi powerful lightweight machine fitted with a closed dust guard, 1.00 HP. Works best with thin parts under 1/16" and on smaller compressors. Includes F5218 3" blade; a thinner blade good for fast cutting with this smaller motor.

3/4" arbor, 16-18 CFM, 90 PSI, 1/4" air inlet, 3/8" min hose size, 8.5" long.

Item
Number
Item
Description
Mfg.
Number
RPMWeightEach
Price

K50233" trimmer80-3HD12,0002.5 lbsAdd to cart | Add to list

3" flush cut trimmer, 1.00 HP

Bodi same motor as on K5023 trimmer listed above, but with a 3" mounted blade with 1/4" spindle shank (F5037A) to cut flush or cut confined areas where larger saws won't fit. Works best on smaller compressors with parts under 1/16".

1/4" collet, 16-18 CFM @ 90 PSI, 1/4" air inlet, 3/8" min hose size, 9" long.

Item
Number
Item
Description
Mfg.
Number
RPMWeightEach
Price

K5023F3" flush cut trimmer80-3F13,0002.5 lbsAdd to cart | Add to list

3" gel coat notch trimmer, 1.00 HP

Bodi unique tool notches gel coat only. Stop stress cracks in gel coat caused by guard rail screws. Base preset with 3/4" offset fence. Steel base won't wear from rough edges. Blade set to 0.020" depth of cut. Includes a F5118 3" blade.

3/4" arbor, 16-18 CFM @ 90 PSI, 1/4" air inlet, 3/8" min hose size, 9" long.

Item
Number
Item
Description
Mfg.
Number
RPMWeightEach
Price

K5023N3" notch trimmer80-3HDN13,0003 lbsAdd to cart | Add to list

2" trimmer

Diatrim 20,000 RPM air trimmer is light and powerful. Designed to fit into hard to reach spaces. Useful for those restricted to using smaller air compressors. Trimmer includes two F5105 continuous rim diamond blades: 2" diameter, 1/16" edge thickness, 1/4" arbor hole, 0.30" maximum cutting depth. This trimmer can also use the thicker 3/32" F5106 blades. Both are shown on our Diamond edge circular blades page.

1/4" arbor, 13.5 CFM @ 90 PSI, 1/4" air inlet, 3/8" min hose size.

Item
Number
Item
Description
Mfg.
Number
RPMWeightEach
Price

K50122" blade saw10-220,0001.5 lbsAdd to cart | Add to list

3" trimmer

Diatrim 12,000 RPM air trimmer is light and powerful. Recommended for trimming smaller and thinner parts. Used by those restricted to using smaller air compressors. Dust extractor guard included. Trimmer includes two F5215 side spoked blades: 3" diameter, 1/16" edge thickness, 1/4" arbor hole, 1/2" maximum cutting depth. This trimmer can also use the thicker 3/32" F5216 blade. Both of these are shown on our Diamond edge circular blades page.

1/2" arbor, 19 CFM @ 90 PSI, 1/4" air inlet, 3/8" min hose size, 10" long.

Item
Number
Item
Description
Mfg.
Number
RPMWeightEach
Price

K50133" blade saw10-312,0003 lbsAdd to cart | Add to list

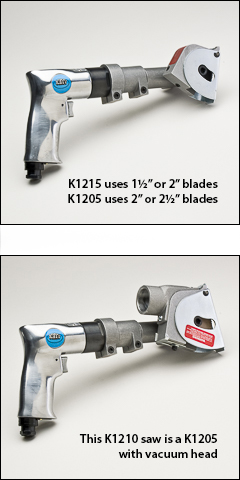

Pneumatic panel saws

Kett highly maneuverable saws with positive stop depth adjustment for precise depth of cut. The variable speed trigger lets you make smooth starting cuts in mild steel up to 16 gauge. A plastic cutting blade will quickly cut through hard or soft plastics without chipping or burring edges. Maximum cutting depths: 5/16" with 1 3/4" blade, 3/8" with 2" blade, and 5/8" with 2 1/2" blade. Please note the 7/16" arbor on these three saws.

7/16" arbor, 4 CFM @ 90 PSI, 1/4" air inlet, 13 1/2" long.

Item
Number
Item
Description
Mfg.
Number
RPMWeightEach
Price
6 ea
Price

K121513/4" or 2" blade sawPS5260 to 2,2005 lbsAdd to cart | Add to list
K12052" or 21/2" blade sawPS5230 to 2,2006 lbsAdd to cart | Add to list

Panel saw with vacuum head

This is same saw as the K1205 described above, but with a vacuum head. Head accepts many standard noses from canister-type or in-plant vacuum systems. Lightweight and efficient saw for controlling dust

Item
Number
Item
Description
Mfg.
Number
RPMWeightEach
Price
6 ea
Price

K12102" or 21/2" blade sawPSV5320 to 2,2006 lbsAdd to cart | Add to list

Blades for these panel saws

Steel tooth circular blades are shown on our Circular blades with teeth page. Carbide grit edge circular blades are also available for these saws.
